Calibration & drift monitoring

Precision calibration for robot fleets

Monitor sensor alignment, arm precision, camera drift, and calibration health across robots operating over repeated shifts. Detect drift before failure with calibration scorecards, sensor drift plots, and maintenance triggers.

≤0.05mm
Positional accuracy
≤0.002°
Angular drift tolerance
48s
Mean calibration cycle
Request a demo View scorecards
Calibra Robotics platform ±0.01mm Cycle #1287

Calibration Scorecard

Robot health at a glance

Each robot receives a live calibration scorecard covering alignment, drift rate, precision spread, and overall health with tolerance bands.

✓
Alignment Score
RMS positional error
0.023
↓ 0.004 mm from last cycle
Tolerance band
00.030.060.090.12
⚠
Drift Rate
mm per 1000 cycles
0.087
↑ 0.012 from last cycle
Tolerance band
00.050.100.150.20
✓
Precision Index
Repeatability (σ)
0.011
↔ stable over last 10 runs
Tolerance band
00.0250.050.0750.10
✓
Health Status
Composite index
94.2
↑ 1.8 from last assessment
Tolerance band
0255075100

How scorecards are computed

Each calibration scorecard combines multi-sensor readings into a unified health metric. Alignment is measured via laser tracker against a reference fixture. Drift rate is computed from a moving window of the last 50 calibration cycles. Precision index captures repeatability across identical test trajectories. All metrics are compared against configurable tolerance bands calibrated per robot model.

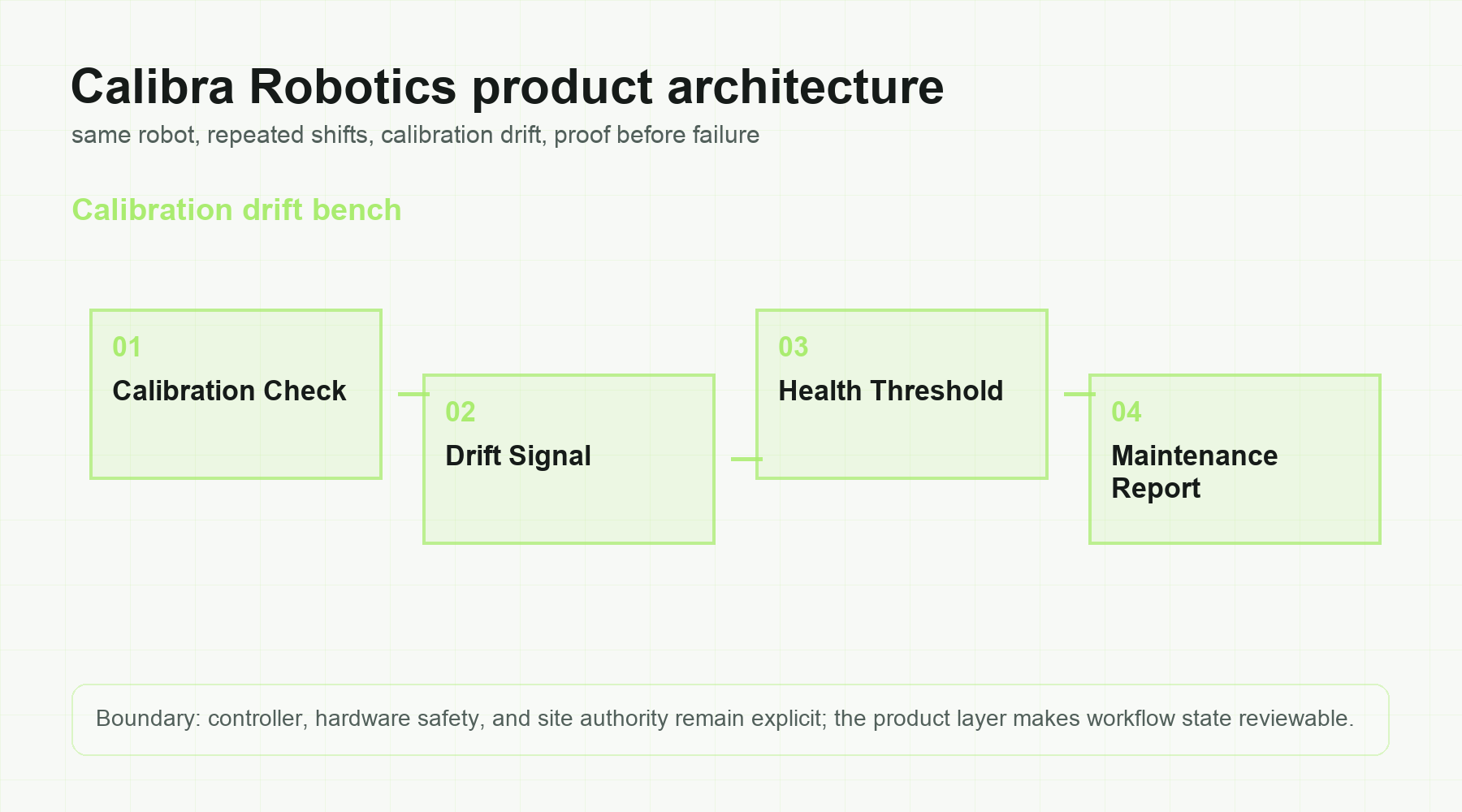

Calibra architecture overview

Drift Detection

Catch drift before failure

Compare nominal calibration state against current readings. Highlight out-of-range parameters with tolerance bands and trend visualization over time.

Nominal Calibration — Reference Run #1 IN RANGE
Joint J1 home position 0.002°
Joint J2 home position -0.001°
Joint J3 home position 0.000°
End-effector X +0.01 mm
End-effector Z -0.01 mm
Camera extrinsic tx 0.03 mm
Current Reading — Cycle #1287 DRIFT DETECTED
Joint J1 home position 0.089°
Joint J2 home position -0.003°
Joint J3 home position 0.051°
End-effector X +0.16 mm
End-effector Z -0.02 mm
Camera extrinsic tx 0.22 mm
End-effector X drift over cycles
Measured Nominal zone --- Limit ±0.15 mm
Nominal zone
+0.15 mm
-0.15 mm
0200400600800100012001287

Sensor Alignment & Tolerance

Every sensor, calibrated

Independent alignment and tolerance tracking for each sensor subsystem across your robot fleet.

Joint Encoders
6-axis absolute
Resolution
0.00004°
Accuracy
±0.001°
Drift / 1K cycles
0.0003°
Last calibrated
2h ago
Within tolerance < 0.8× limit
LiDAR Alignment
2D planar scan
Resolution
0.25°
Range accuracy
±3 mm
Drift / 1K cycles
0.8 mm
Last calibrated
6h ago
Approaching limit 0.91× limit
Camera Extrinsics
Stereo RGB-D
Resolution
1920×1080
Reprojection err
0.18 px
Drift / 1K cycles
0.06 px
Last calibrated
30 min ago
Within tolerance < 0.5× limit

Multi-sensor fusion

Unified calibration pipeline

Calibra runs a unified calibration pipeline that fuses joint encoder, LiDAR, and camera data in a single optimization pass. Crosshair alignment targets are used as fiducial references. Each sensor is independently tracked for drift with per-sensor tolerance bands that trigger maintenance alerts before cumulative error exceeds operational thresholds.

Robot calibration field context

Maintenance Triggers

From detection to resolution

Automated triggers escalate drift signals into actionable maintenance workflows before precision degrades.

1
Detect Drift
Continuous monitoring flags any parameter exceeding its tolerance band during routine calibration cycles.
2
Classify Severity
Drift is classified as informational, warning, or critical based on distance from the calibrated nominal.
3
Generate Work Order
Critical and warning events auto-generate maintenance work orders with the affected sensor and drift delta.
4
Verify & Close
Post-maintenance recalibration confirms the parameter is back within tolerance before the work order is closed.
Condition Threshold Action
Joint home drift WARN > 0.05° Schedule recalibration within 24h
Joint home drift CRIT > 0.12° Halt robot; immediate service
End-effector position WARN > 0.08 mm Flag for next maintenance window
End-effector position CRIT > 0.15 mm Halt robot; recalibrate now
Camera reprojection INFO > 0.5 px Log event; no immediate action
Camera reprojection CRIT > 2.0 px Halt vision tasks; recalibrate
Precision σ spread CRIT > 0.05 mm Inspect mechanical wear

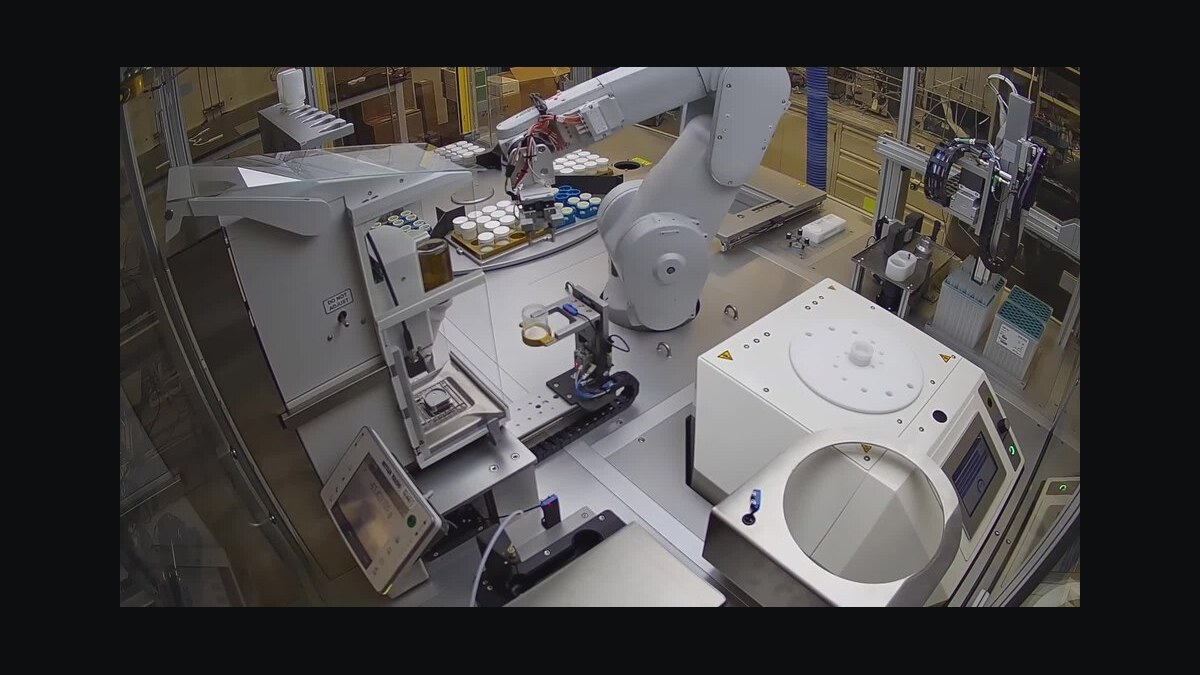

Robot arm calibration

Fleet-wide Calibration Health

Calibration status across the fleet

A single view of calibration health for every robot in your fleet. Identify at-risk units before they impact production.

24
Active robots
18
Healthy
4
Watch list
2
Needs recalibration
Robot Alignment Drift rate Precision Camera Health
RBT-AX-01 0.018 mm 0.002°/K 0.009 mm 0.12 px Healthy
RBT-AX-02 0.021 mm 0.005°/K 0.011 mm 0.15 px Healthy
RBT-AX-03 0.023 mm 0.087°/K 0.011 mm 0.22 px Watch
RBT-AX-04 0.070 mm 0.014°/K 0.010 mm 0.18 px Watch
RBT-AX-05 0.160 mm 0.032°/K 0.014 mm 2.10 px Action needed
RBT-AX-06 0.182 mm 0.041°/K 0.043 mm 0.30 px Action needed
Fleet calibration compliance
Alignment
92%
Drift rate
75%
Precision
100%
Camera
83%
Overall
88%
Shift calibration summary
Fleet calibration overview

Last fleet-wide audit: 2 hours ago. 92% of robots completed their most recent calibration cycle within tolerance. 2 robots flagged for immediate recalibration.

Deploy Calibra

Bring precision to your robot fleet

Integrate Calibra Robotics into your existing operations. Supports ROS 2, custom calibration targets, and standard industrial robot interfaces. Deploy on-premise or at the edge.

Request a demo Read the integration guide
ROS 2 URDF/xacro AprilTag gRPC ONNX Runtime Time-series DB Docker
